*This price is including 5X-300D, Built-in PC, Dust Extractor and CAM Software (Hyperdent).
ARUM Milling Machines by DOOWON
Arum is a brand name of milling machines of DOOWON in Korea. Doowon has been the fastest growing company in the world.
Doowon has technologies to make strong milling machines for all materials including metal disks and premilled blanks with powerful spindle and strong frame.
Click here to see Arum Milling Brochure.

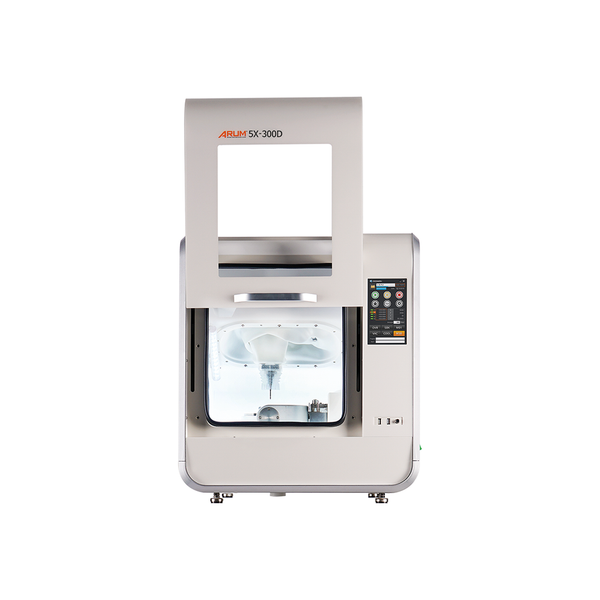

Product Summary - 5X-300D
-Dry Milling
-Built-in PC with Wifi and LAN connectivity
-Heavy-Duty Spindle
-Auto tool changer
-5-Axis Simultaneous Milling
What 5X-300D can mill?
Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge, Dental Bar, Screw-Retained Bridge, Implant Crown Bridges, Full Arch Crowns, Model, Splint
What material it can mill?
-Zirconia, PMMA, Wax, PEEK, PEKKTON and other materials
Product Features
01. Friendly User Interface Design
Intuitive User Interface configuration improves user convenience.
02. 5-Axis super precision machining
All materials, excluding metal, can be precisely milled
03. Selective Processing
Option to mill Zirconia by wet process or dry process.
04. Outstanding Design
The small size and beautiful aesthetics of the equipment are sure to complement your dental office and laboratory.
Materials & Applications Info.
| Materials | Applications | |||
| Pre-milled Blank (Titanium) | X | Implant Bar | X | |
| Co-Cr & Ni-Cr Disk | X | Screw-Retained Bridge (Crown & Coping) | X | |
| Titanium Disk | X | Customized Abutment | X | |
| Lithium Disilicate | X | Hybrid Abutment | ◎ | |
| Nanocomposite | ◎ | Inlay & Onlay | ◎ | |
| Zirconia | ◎ | Crown & Coping | ◎ | |
| PMMA | ◎ | Crown & Coping Bridge | ◎ | |
| PEEK | ◎ | Model | ◎ | |
| Wax | ◎ | Bite Splint | ◎ | |
| Denture | O | |||
Specifications
| Model | 5X-300D | |
| Axis | 5-Axis | |
| Processing | Dry | |
| Spindle Power | AC 0.5kw | |
| Max. RPM | 60,000 | |
| A.T.C | 12 | |
| Tool Shank (mm) | Ø4 | |
| Motor | Stepping | |
| Drive Mechanism | Ball Screw | |
| Way System | Linear Guide | |
| Machine Size (W*D*H) | 570*620*640mm | |
| Total Size (W*D*H) | - | |
| Weight (Machine / Table) | 90kg / - | |
| Travel | X,Y,Z axis | 159*120*90mm |
| A / B axis | ±30˚ / 360 | |
