*This price is including 5X-200, Standing Cabinet, Built-in PC, Water tank and CAM Software (Hyperdent).
ARUM Milling Machines by DOOWON
Arum is a brand name of milling machines of DOOWON in Korea. Doowon has been the fastest growing company in the world.
Doowon has technologies to make strong milling machines for all materials including metal disks and premilled blanks with powerful spindle and strong frame.
Click here to see Arum Milling Brochure.

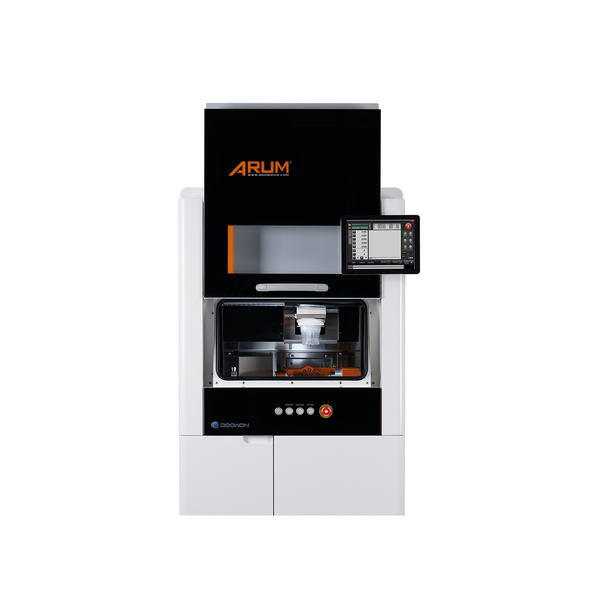

Product Summary - 5X-200
- Hybrid Milling (Wet and Dry) - Most Strong Dental Mill
- Built-in PC with Wifi and LAN connectivity
- Heavy-Duty Spindle for all available materials including metal
- Auto tool changer (15 tools)
- 5-Axis Simultaneous Milling
What 5X-200 can mill?

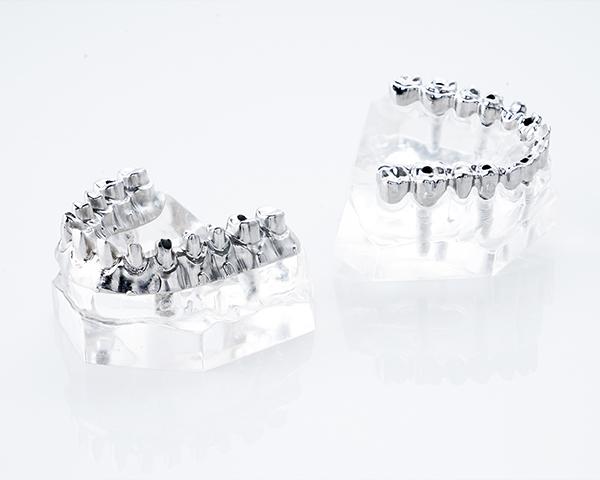

Inlay and Onlay, Crown, Coping, Crown Bridge, Coping Bridge, Dental Bar, Screw-Retained Bridge, Customized Abutment, Hybrid Abutment, Model, Splint
What material it can mill?
Titanium Disk, Co-Cr Disk, Ni-Cr Disk, Pre-Milled Blank (Titanium), Zirconia, Lithium Disilicate, Nanocomposite, PMMA, PEEK, Wax, PEKKTON and all materials in the market
Product Features
The DC3.0 spindle makes it possible to mill all current dental materials, such as CoCr, Glass Ceramic, and Zirconia.

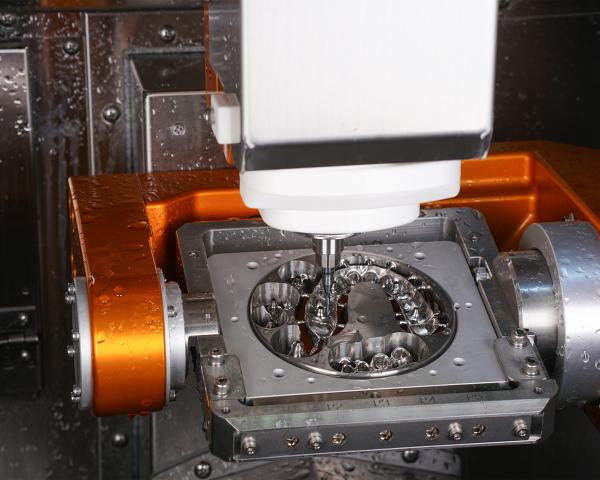

02. Innovative Simultaneous 5-Axis Milling Precision
Simultaneous 5-axis control minimizes machining blind spots while maximizing the quality of the finished product.

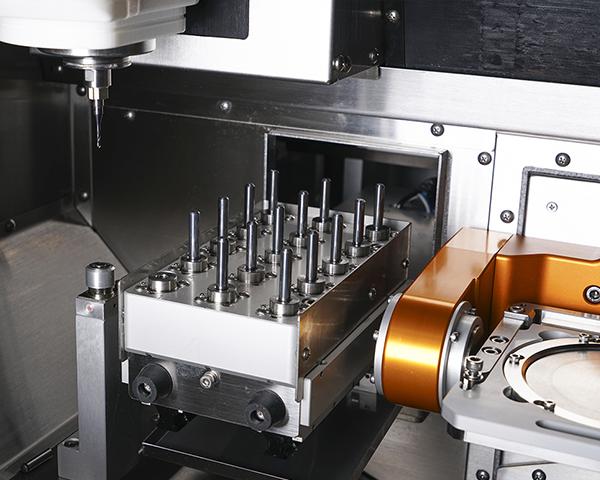

03. 15 Position Automatic Tool Changer
Various materials can be processed under one setting with the automatic tool changer.
04. Metal & Zirconia Processing Ability
Robust frame and delicate machining ability helps overcome material limitations.

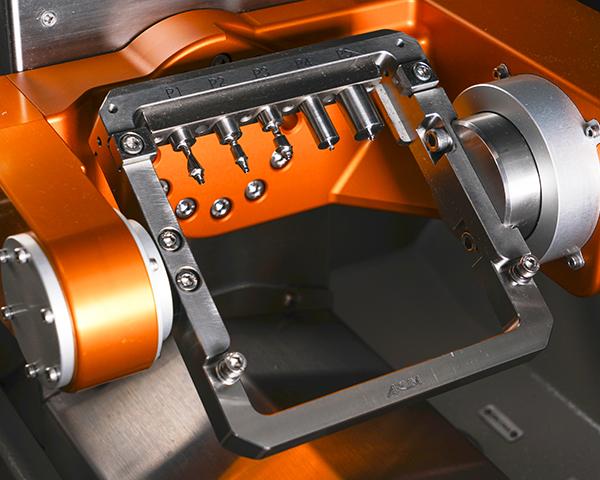

05. Customized Abutment Simultaneous Milling
Five customized abutments can be processed simultaneously without compromising quality.
Materials & Applications Info
| Materials | Applications | ||
| Pre-milled Blank (Titanium) | ◎ (5ea) | Implant Bar | ◎ |
| Co-Cr & Ni-Cr Disk | ◎ | Screw-Retained Bridge (Crown & Coping) | ◎ |
| Titanium Disk | ◎ | Customized Abutment | ◎ |
| Lithium Disilicate | ○ | Hybrid Abutment | ◎ |
| Nanocomposite | ◎ | Inlay & Onlay | ◎ |
| Zirconia | ◎ | Crown & Coping | ◎ |
| PMMA | ◎ | Crown & Coping Bridge | ◎ |
| PEEK | ◎ | Model | ◎ |
| Wax | ◎ | Bite Splint | ◎ |
| Denture | ◎ | ||
Specifications
| Axis | 5-Axis | |
| Processing | Wet and Dry | |
| Spindle Power | DC 3.0kw | |
| Max. RPM | 60,000 | |
| A.T.C | 15 | |
| Tool Shank (mm) | Ø6 | |
| Motor | Servo | |
| Drive Mechanism | Ball Screw | |
| Way System | Linear Guide | |
| Machine Size (W*D*H) | 800*950*940mm | |
| Total Size (W*D*H) | 800*950*1760mm | |
| Weight (Machine / Table) | 270kg / 135kg | |
| Travel | X,Y,Z axis | 330*146*145mm |
| A / B axis | 360˚/ ±30˚ | |
*This price is including 5X-200, dust collector, cabinet stand and CAM Software (Hyperdent).
