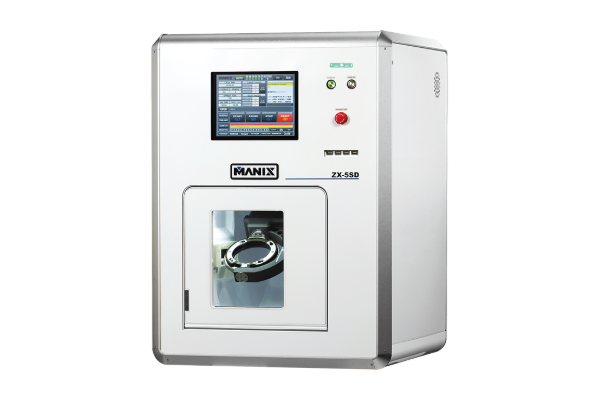

ZX-5SD
Click image to open expanded view

ZX-5SD

Sale price
$47,000.00
List price
$56,000.00
You save
$9,000.00 (17%)
ZX-5SD

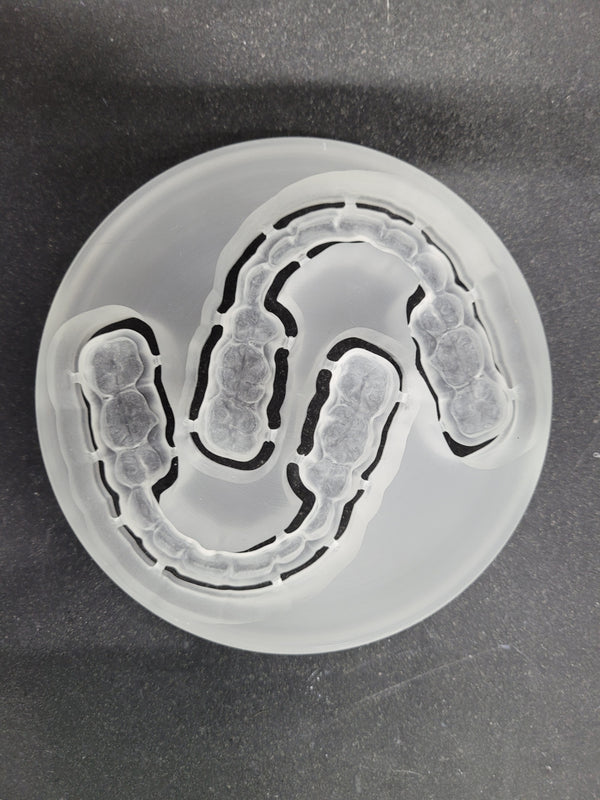

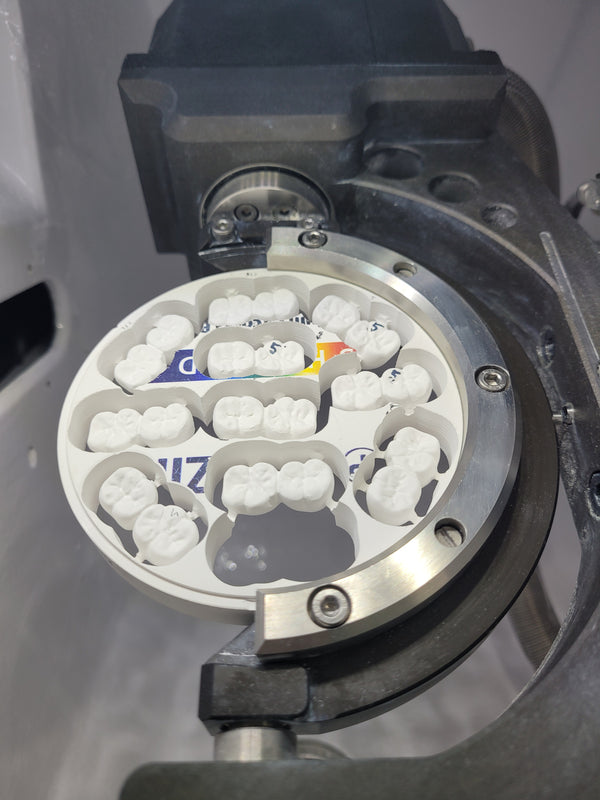

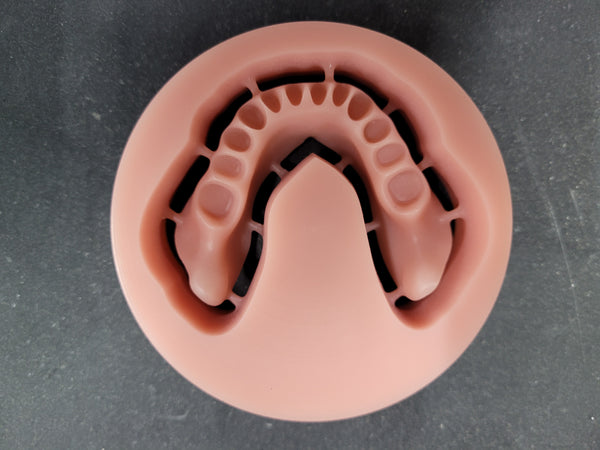

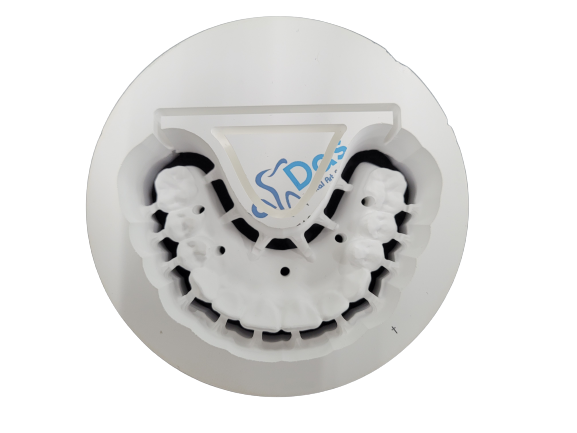

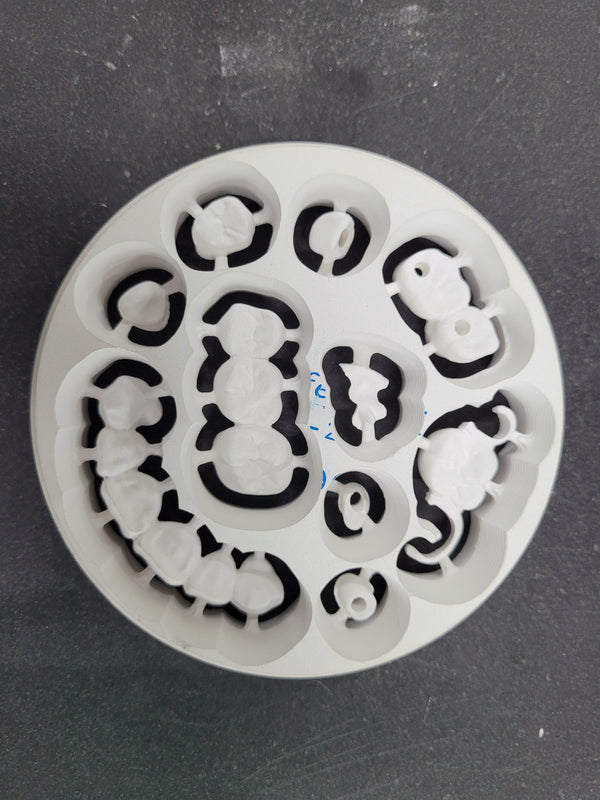

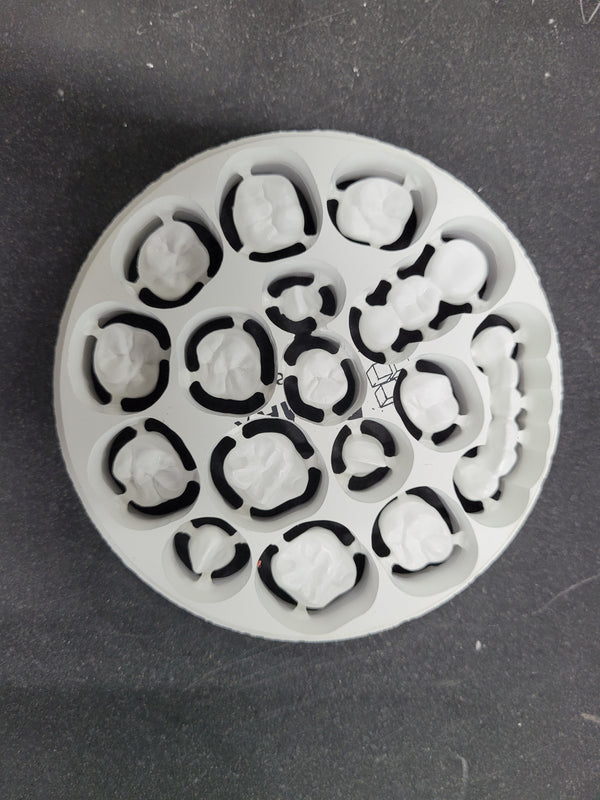

Capability to fabricate various protheses made of Zirconia, PMMA, wax or hybrid ceramic
Wireless Auto-Calibration
Schedule
Tool Life

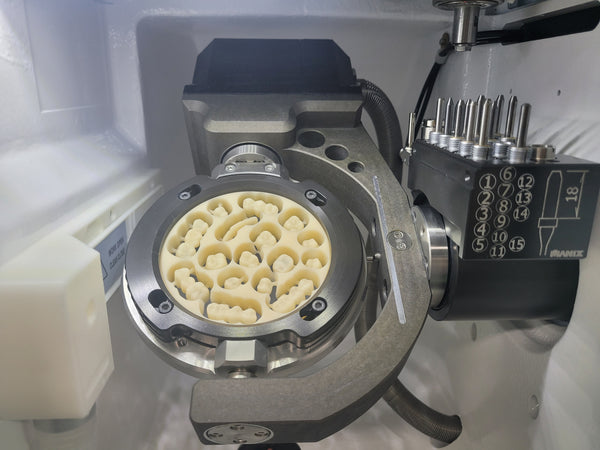

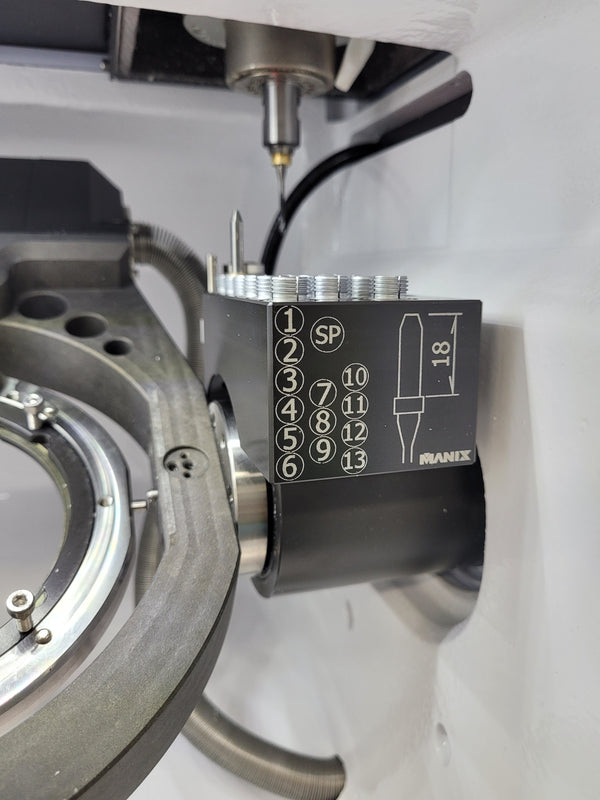

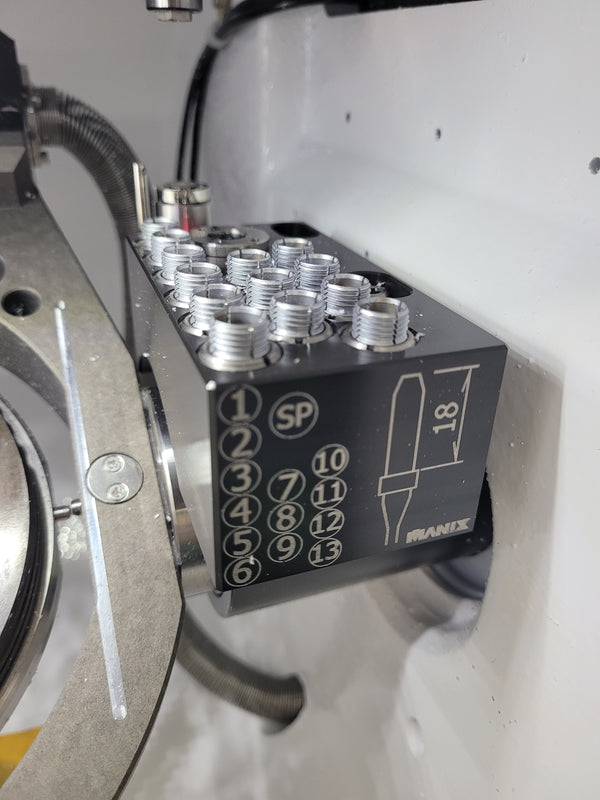

15 ATCs (automatic tool changers)
User-friendly interface
Various templates included
Frame-integrated casting body with excellent durability

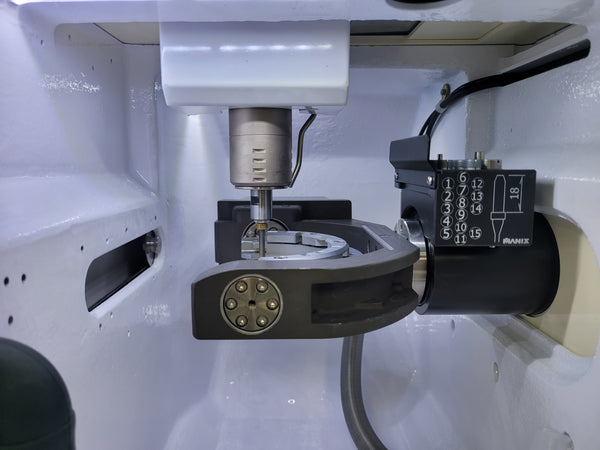

High-rigidity spindle
Industrial LM guides
Equipped with harmonic reducer
10” touchscreen interface



SPECIFICATION

Dimensions D/W/H(m/m) 600x600x860
Weight 120kg
Electrical connection value 110/220V, 50~60Hz
Spindle(W) 500W
Motor speed (rpm) 30,000 min-1
Compressed air 6bar 50 L/min
Tool holder (EA) 15
Chuck (mm) 4
Axes 5
Table Option
Dust collector Option

MATERIAL AND INDICATIONS

Indications

 Zirconia PMMA WAX Hybrid Ceramic Sinter metal
Coping ○ ○ ○ ○
Coping Bridge ○ ○ ○ ○
Crown ○ ○ ○ ○ ○
Crown Bridge ○ ○ ○ ○
Link Angle Abutment ○
Link Abutment ○ ○ ○
Abutment Crown ○ ○ ○ ○
Abutment Crown Bridge ○ ○ ○ ○
Inlay/Onlay ○ ○ ○ ○
Bitesplint ○
Partial frame ○
Veneer ○



TOOL LIST
Material Order code Tool size
Zirconia, Sinter Metal ZX5W-Z1 Ø2 × 20
ZX5W-Z2 Ø1 × 16
ZX4-Z3 Ø0.6 × 12
PMMA, Wax ZX5W-P1 Ø2 × 18
ZX5W-P2 Ø1 × 14
ZX4-P3 Ø2 × 5
Hybrid Ceramic ZX4W-G1-HS Ø2 × 12
ZX4W-G2-HS Ø1 × 10
ZX4W-G3-HS Ø0.6 × 12
