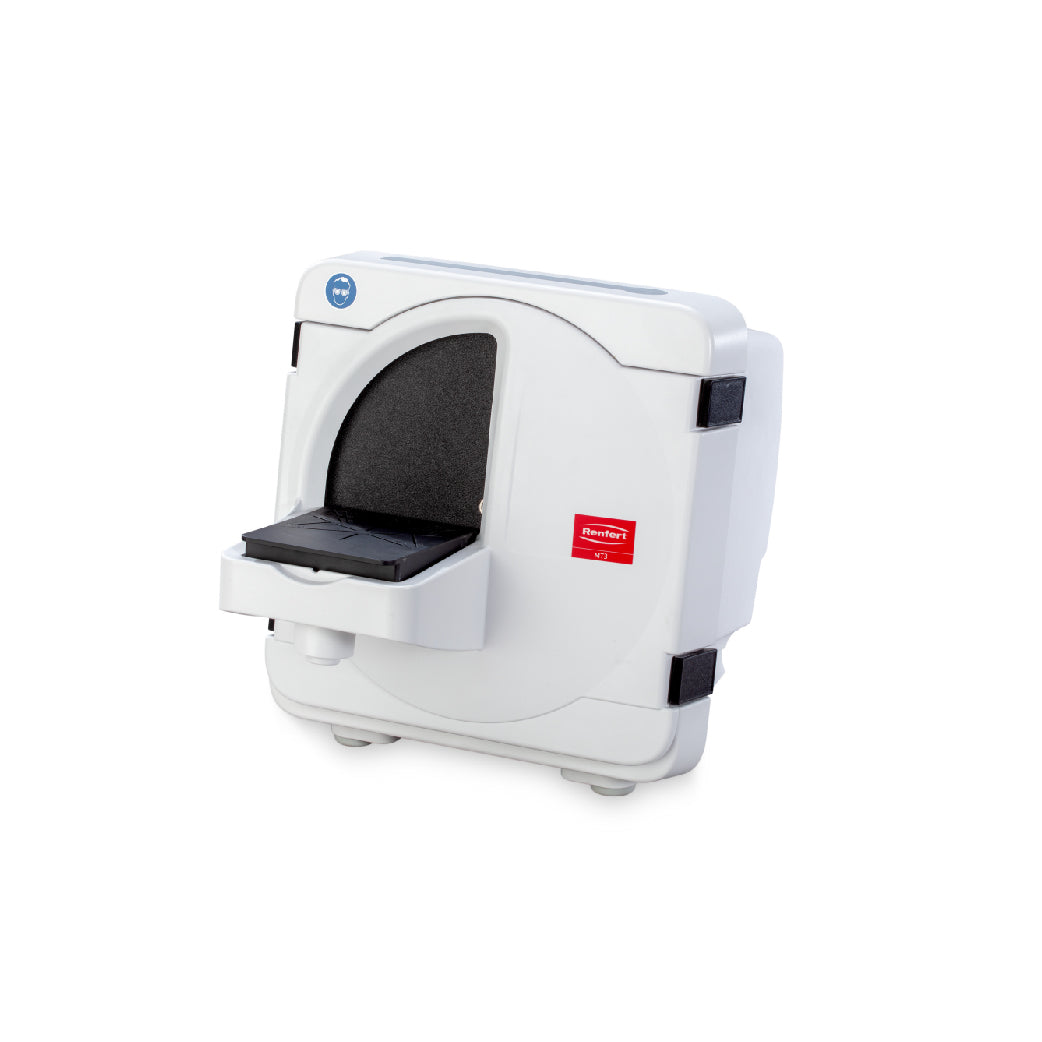

MT3

Wet trimmer

The MT3 wet trimmer is impressive due to its exceptionally powerful motor. With the MT3 Renfert provides high-performance trimming at a low price.



Advantage

  • Quick change of the trimmer table angle using the practical tipping mechanism (90°/ 98°).
  • Safety: when the front door is opened a safety switch stops the motor and water.
  • Uniform coverage by the optimally positioned spray tube prevents clogging of the trimmer disc

Detail

  • Optimum view of the model due to a 10° inclination of the unit.
  • Easy guidance of the plaster model with the aid of slotted angle lines on the trimmer table





Technical data

Name

MT3 incl. Klettfix trimmer disc, 220-240 V

MT3 incl. Marathon trimmer disc, 220-240 V

MT3 incl. Klettfix trimmer disc, 100-120 V

MT3 incl. Marathon trimmer disc, 100-120 V

MT3 100-120 V JP + Klettfix trimmer disc

Article number

18080000

18080500

18081000

18081500

18082000

Permissible mains voltage

220–240 V

220–240 V

100–120 V

100–120 V

220–240 V

Permissible mains frequency

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

50/60 Hz

Power consumption

1300 W (230 V)
1.74 hp (230 V)

1300 W (230 V)
1.74 hp (230 V)

1325 W (120 V)
1.78 hp (120 V)

1325 W (120 V)
1.78 hp (120 V)

1300 W (230 V)

Motor performance (P1)

1300 W
1.74 hp

1300 W
1.74 hp

1300 W
1.78 hp

1300 W
1.78 hp

1300 W
1.74 hp

Motor performance (P2)

900 W
1.21 hp

900 W
1.21 hp

900 W
1.34 hp

900 W
1.34 hp

900 W
1.21 hp

Rotational speed

2880–3400 rpm

2880–3400 rpm

2880–3400 rpm

2880–3400 rpm

2880–3400 rpm

Water consumption max.

7 l/min
0.25 cfm

7 l/min
0.25 cfm

7 l/min
0.25 cfm

7 l/min
0.25 cfm

7 l/min
0.25 cfm

Water pressure min. / max.

1–5 bar
14.5–72.5 psi

1–5 bar
14.5–72.5 psi

1–5 bar
14.5–72.5 psi

1–5 bar
14.5–72.5 psi

1–5 bar
14.5–72.5 psi

Ø (Connection piece for drain hose)

36 mm
1.42 "

36 mm
1.42 "

36 mm
1.42 "

36 mm
1.42 "

36 mm
1.42 "

Ø (Trimmer disc)

234 mm
9.2 "

234 mm
9.2 "

234 mm
9.2 "

234 mm
9.2 "

234 mm
9.2 "

Dimensions (W x H x D)

305 x 330 x 410 mm
12.0 x 13.0 x 16.2"

305 x 330 x 410 mm
12.0 x 13.0 x 16.2"

305 x 330 x 410 mm
12.0 x 13.0 x 16.2"

305 x 330 x 410 mm
12.0 x 13.0 x 16.2"

305 x 330 x 410 mm
12.0 x 13.0 x 16.2"

Weight (without trimmer disc)

~13,2 kg
~29 lbs

~13,2 kg
~29 lbs

~13,2 kg
~29 lbs

~13,2 kg
~29 lbs

~13,2 kg
~29 lbs
