Silence-CAM100 is an extraction device for suction of dust generated in dentistry.
CAM equipment. You can manually control the suction through the touch pad.
Automatic suction through CAM equipment. Suction linkage possible
Suction operation by receiving signals from various CAM equipment
The status of this device is output as a contact signal.
The suction performance is fixed and cannot be changed.
Features

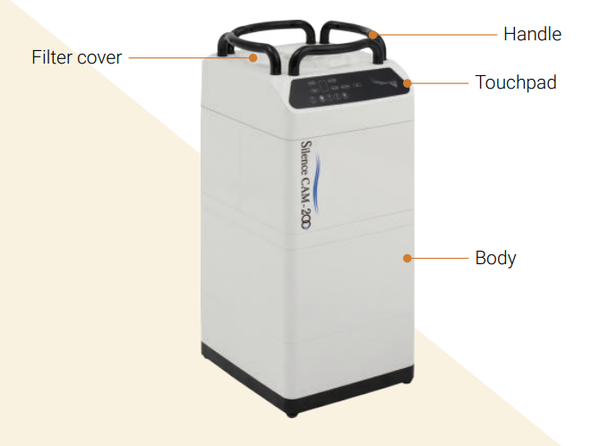

Front Appearance

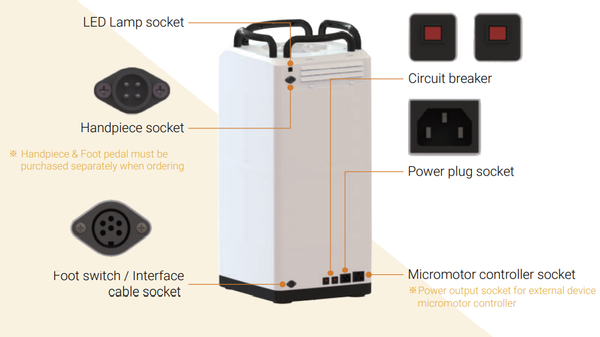

Back Appearance
Silence CAM-100 Filters
2nd Filter Bracket
3rd Filter - ULPA filter [99.9995%]
4th Filter - Air Filter
[The filter replacement notification informs you when to replace (clean) by measuring the pressure in the suction part by the pneumatic sensor. Also, the replacement (cleaning) cycle of the filter may vary depending on the usage. It is recommended to change the 3rd filter together when replacing the 1st filter.]
2nd Filter bracket
3rd ULPA filter [99.9995%]
4th Air filter
CAM Interlocking cable
Ventilation cover
Suction hose
Power plug
Optional Accessory
Pocket filter
Technical Data
| Working Voltage | 230V | 120V |
| Permissible mains voltage | 200V ~ 240V | 100V ~ 120V |
| Mains frequency | 50 / 60Hz | 50 / 60Hz |
| Suction motor output | 1200W | 1200W |
| CAM interface | CAM interface cable | |
| Filterquality | ULPA U15 grade | |
| Noise level (at max. volume) |
55dB | |
| Weight (empty), approx | 13Kg | |
| Dimensions (width x depth x height ) |
CAM 100 : 285X295X485mm | CAM 200 : 285X295X730mm |
Specifications
Description : Extraction unit for CAM systems
Model no.: Silence CAM-100, Silence CAM-200
Materials : ABS, PC
Wattage : 1240W±5%(230V), 1200W±5%(120V)
Voltage : Single phase AC 220V-240V~, 50/60Hz
Single phase AC 100V-120V~, 50/60Hz
Current : 230V(5.2A) / 120V(10A)
Max. air flow : 3.74m3/min(ULPA filter)
Max. air pressure : 23kpa(Ø50)
Filters : 1st filter(Medium filter, 3㎛), 2nd filter(ULPA filter, 0.1㎛, 99.9995%), 3rd filter(Air filter
Product weight : 13kg
Noise : approx. 55dB
CAM-100 size : 295(W)*330(D)*485(H)mm
CAM-200 size : 295(W)*330(D)*695(H)mm
Suction level : 1~9stage
Motor operating temperature : 0~40℃
Storage temperature : -20~80 ℃
Storage humidity : RH 20 ~80%
Product standard components : Main unit, filters, Suction hose 2meter, Power plug, CAM interface cable
